NJ Phillips 10mL Metal Lamb Drencher WX1506 Major Service Kit
NJ Phillips 10mL Metal Lamb Drencher WX1506 Major Service Kit
$47.10 Incl GST
Major Service Kit for the 10mL Metal Lamb Drencher PAD1322
| Parts in Kit | Part No. |
| Seal Ring (010-S70) | 3 |
| x2 Valve Spring | 4 |
| x2 Valve | 5 |
| Seal Ring (013-N70) | 6 |
| x2 Seal Ring (115-S70) | 10 |
| 10mL Barrel | 11 |
| Lubricating Washer | 13 |
| O-Ring (011-N70) | 15 |
| O-Ring (012-N70) | 17 |
Sold By: NJ Phillips
Availability: Available
Any Questions LiveChat online now or call 1300 813 500

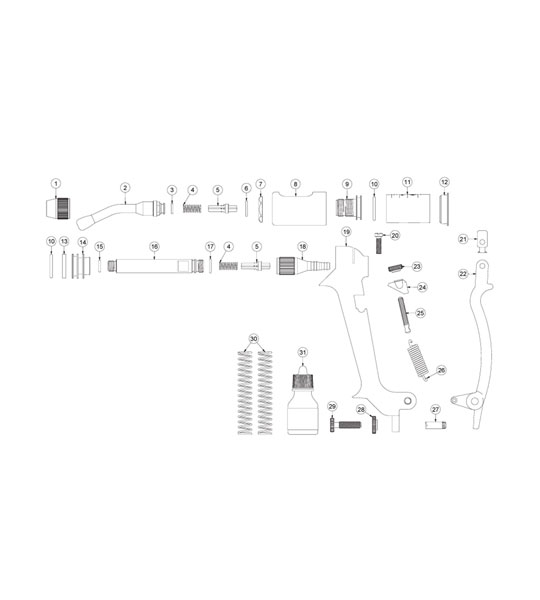

Service Kit Parts Breakdown
| 1. Nozzle Nut | 12. Barrel Spacer Bush | 23. Spring Adjuster Nut |
| 2. Nozzle | 13. Lubricating Washer | 24. Trunnion (Adjuster) |
| 3. Seal Ring (010-S70) | 14. 20mL Piston | 25. Adjuster Spindle |
| 4. Valve Spring | 15. O-Ring (011-N70) | 26. Spring |
| 5. Valve | 16. 10mL Pushrod | 27. Lever Screw |
| 6. Seal Ring (013-N70) | 17. O-Ring (012-N70) | 28. Dose Adjuster Lock Nut |
| 7. Lock Nut | 18. Inlet Fitting | 29. Dose Adjuster Screw |
| 8. S/W Cover | 19. Handle | 30. Feed Tube Spring |
| 9. Delivery Valve Cage | 20. Screw | 31. Lubricant |
| 10. Seal Ring (115-S70) | 21. Lever Pads | |
| 11. 10mL Barrel | 22. Lever |
