Allflex VID Tag Sizes

Allfex's Visual Management Tag Size Chart

LazaTag Sizes	Height	Width
Super Maxi Female 14	121mm	76mm
Maxi Male 07 or Maxi Female 08	99mm	73mm
Large Male 05 or Large Female 06	76mm	56mm
Medium Male 03 or Medium Female 04	59mm	56mm
Small Male 11 or Small Female 12	49mm	41mm
Min Male 09 or Mini Female 10	51mm	17mm
Button Male 01 or Button female 02	29mm

One Piece Tags	Height	Width
A-Tag V2 Maxi - Long Neck	114mm	76mm
A-Tag V2 Large - Short Neck	84mm	62mm
A-Tag V2 Feedlot	114mm	62mm
Feedlot Tag	114mm	72mm

For any questions relating to size please don't hesitate to call us on: 1300 813 500

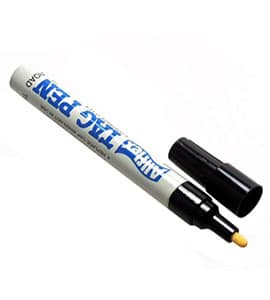

Allflex Tag Marker Pen (Broad & Fine)

Allflex Tag Marker Pen (Broad & Fine)

Mark your own tags! Available in Black and White.
Specifically designed for use with the Allflex LazaTag, A-Tag and Feedlot Tag ranges.
Special ink formulae designed to give the longest marking life possible.
Best results are obtained by shaking the pen thoroughly, writing the ID once on the tag using the Allflex tag pen, letting the ink dry and then writing over the ID a second time.
Following these steps should provide you with an ID that is readable in the paddock for years!

Colour

Clear

Allflex VID Tag Sizes

Allfex's Visual Management Tag Size Chart

LazaTag Sizes	Height	Width
Super Maxi Female 14	121mm	76mm
Maxi Male 07 or Maxi Female 08	99mm	73mm
Large Male 05 or Large Female 06	76mm	56mm
Medium Male 03 or Medium Female 04	59mm	56mm
Small Male 11 or Small Female 12	49mm	41mm
Min Male 09 or Mini Female 10	51mm	17mm
Button Male 01 or Button female 02	29mm

One Piece Tags	Height	Width
A-Tag V2 Maxi - Long Neck	114mm	76mm
A-Tag V2 Large - Short Neck	84mm	62mm
A-Tag V2 Feedlot	114mm	62mm
Feedlot Tag	114mm	72mm

For any questions relating to size please don't hesitate to call us on: 1300 813 500

Sold By: Allflex

SKU: 194-V Categories: Allflex, Allflex One Piece Tags, Allflex Applicators Etc., Ancillary Tagging Items, Tag Pens Tag: tag pen Brand: Allflex

Availability: Available

Any Questions LiveChat online now or call 1300 813 500

Additional information
How to use a tag marker pen
Size Guide

Additional information

Colour	White, Black

When choosing a marking pen over laser engraved or lazerFX tags, there are several factors to consider:

Ink degrades in UV light.
Spraying or misting marked tags with fly spray will remove ink and decreases the life of the mark.
A Sharpie ink pen will last about 3 to 4 months.
Allflex pens have xylene in the ink which carries the ink into the plastic.
Applying ink with an Allflex tag marking pen only once without cleaning the tag will last about 6 months to a year or so.
Black is best. White ink does not soak in as well.

There are steps to follow to get the most out of an Allflex tag ink pen. 1. The key is to get the any oil film off the tag surface. Oil can act as a barrier preventing the ink from soaking in. Plastic is made from oil, thus oil removal needs to be done not long before marking the tag because if you let the package of tags sit for days, oil resurfaces.

Wipe the blank tag with alcohol to remove the oil film off the tag. (Some people place the tags in a dishwasher with hot water but DO NOT use the dry/heat cycle!)
NOTE: If you are going to mark on a tag that already has laser/lazerFX print on it, please make sure not to wipe down the pre-printed part of the tag. Only wipe down the portion of the tag you are going to be writing on.

2. On the dry tag, mark the number at least 3 times and let dry a few seconds between each mark in order to put a higher volume of ink on the tag. Sometimes, the ink will go completely through the other side of the tag using this method. Typically, it will last up to 4+ years depending on the environment. The sun will still continue to fade the ink.
